How to detect invalid IP4 addresses using a data quality check
This sample shows how to use data quality checks in the DQOps platform to detect invalid IP4 addresses and view the results on data quality dashboards.
Overview
The following example shows how to verify that the number of invalid IP4 address in a column does not exceed the maximum accepted count.
PROBLEM
Here is a table with some sample data. In this example, we will monitor the ip4
column.
The ip4
column contains IP4 address values. We want to verify the number of invalid IP4 address values on ip4
column.
SOLUTION
We will verify the data using monitoring invalid_ip4_address_format_found column check.
Our goal is to verify if the number of invalid IP4 address values in ip4
column does not exceed set thresholds.
In this example, we will set the maximum count threshold level for the check:
- warning: 0
If you want to learn more about checks and threshold levels, please refer to the DQOps concept section.
VALUE
If the number of IP4 address values exceed 0, a warning alert will be triggered.
Data structure
The following is a fragment of the DQOps
dataset. Some columns were omitted for clarity.
The ip4
column of interest contains both valid and invalid IP4 address values.
ip4 | result | date |
---|---|---|
256.212.62.31 | 0 | 2/12/2023 |
206212177195 | 0 | 3/13/2022 |
206-212-177-195 | 0 | 5/15/2022 |
138.181.31.220 | 1 | 1/11/2023 |
225.129.88.137000 | 1 | 1/11/2023 |
116.229.97.20 text | 1 | 1/11/2023 |
111218.203.183.163 | 1 | 1/11/2023 |
239.62.26.116 | 1 | 1/11/2023 |
189.133.75.23 | 1 | 1/11/2023 |
63.219.239.5 | 1 | 1/11/2023 |
(67.170.154.241) | 1 | 1/11/2023 |
206.212.177.195 | 1 | 1/11/2023 |
217.22.25.65 | 1 | 1/11/2023 |
198.235.37.157 | 1 | 1/11/2023 |
text 127.186.60.232 | 1 | 1/11/2023 |
55.190.92.1 | 1 | 1/11/2023 |
150.238.182.105 | 1 | 1/11/2023 |
233.227.62.33 | 1 | 1/11/2023 |
Run the example using the user interface
A detailed explanation of how to start DQOps platform and run the example is described here.

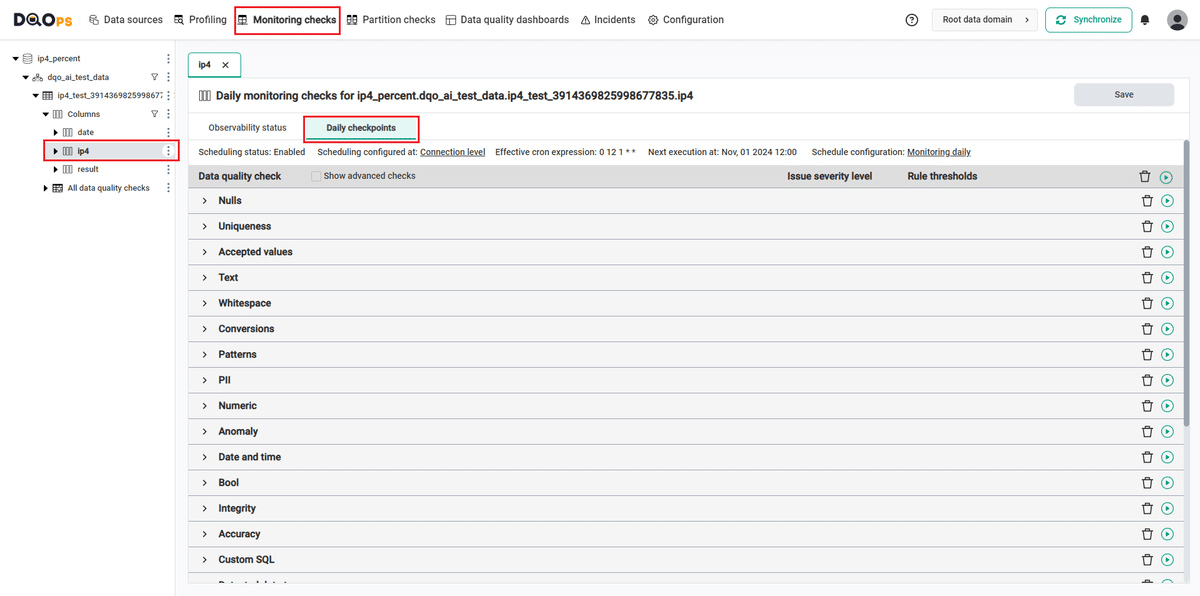

Navigate to a list of checks
To navigate to a list of checks prepared in the example using the user interface:
-
Go to the Monitoring section.
The Monitoring Checks section enables the configuration of data quality checks that are designed for the daily and monthly monitoring of your data source.
-
Select the table or column mentioned in the example description from the tree view on the left.
On the tree view you can find the tables that you have imported. Here is more about adding connection and importing tables.
-
Select the Daily checkpoints tab.
This tab displays a list of data quality checks in the check editor. Learn more about navigating the check editor.

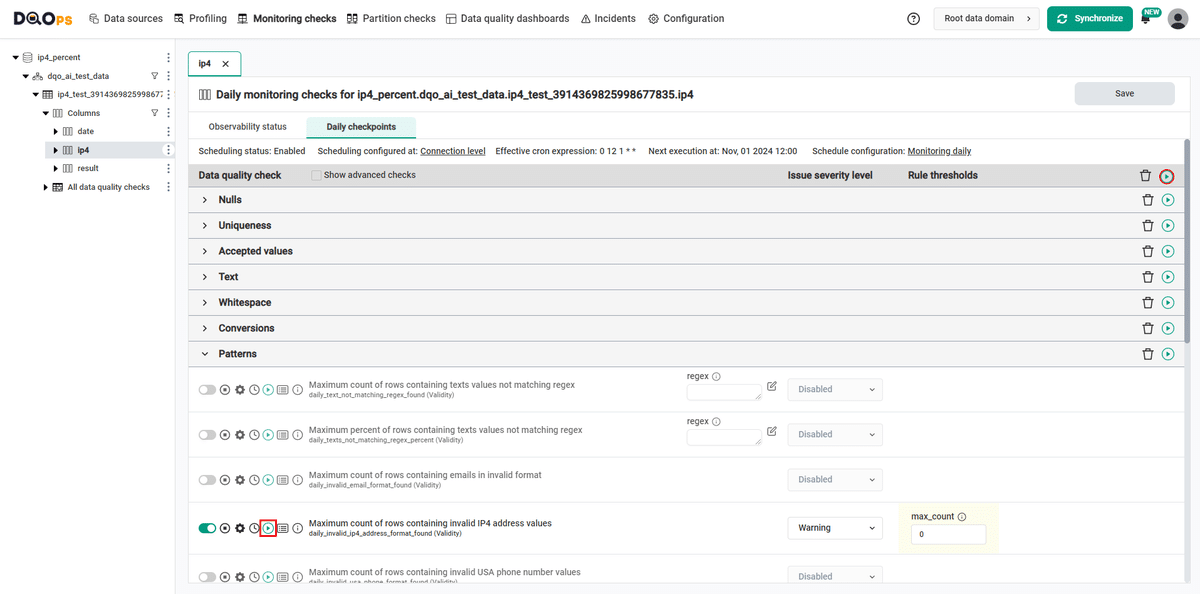

Run checks
Run the activated check using the Run check button.
You can also run all the checks for an entire subcategory of checks using the Run check button at the end of the line with the check subgroup name.

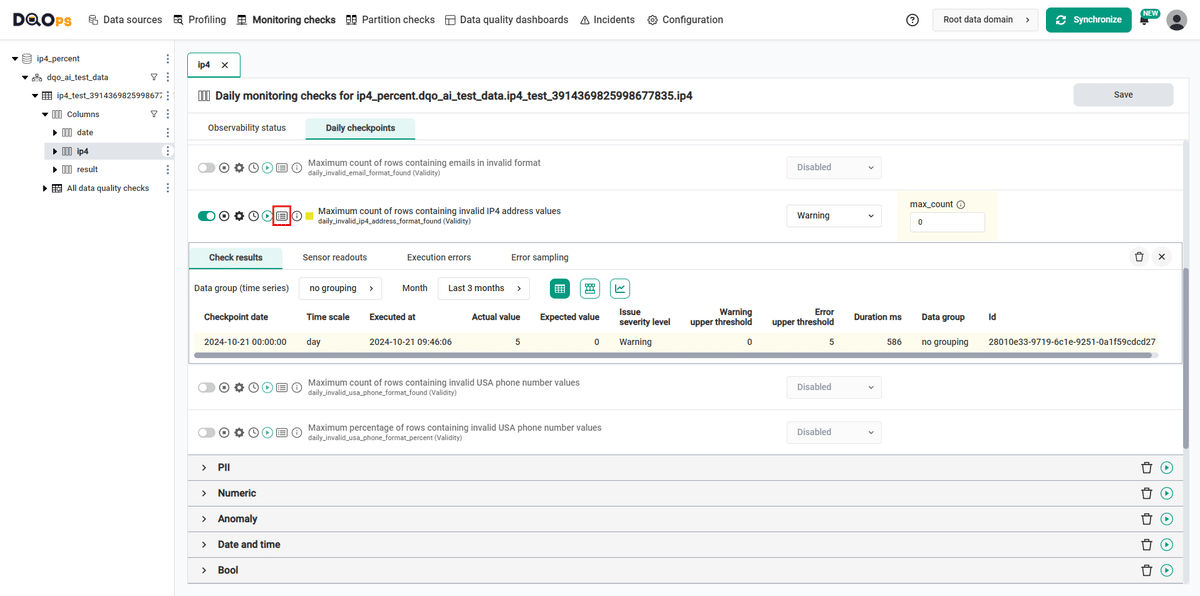

View detailed check results
Access the detailed results by clicking the Results button. The results should be similar to the one below.
Within the Results window, you will see four categories: Check results, Sensor readouts, Execution errors, and Error sampling. The Check results category shows the severity level that result from the verification of sensor readouts by set rule thresholds. The Sensor readouts category displays the values obtained by the sensors from the data source. The Execution errors category displays any error that occurred during the check's execution. The Error sampling category displays examples of invalid values in the column.
The actual value in this example is 5, which is above the maximum threshold level set in the warning (0). The check gives a warning (notice the yellow square to the left of the check name).
Synchronize the results with the cloud account
Synchronize the results with your DQOps cloud account using the Synchronize button located in the upper right corner of the user interface.
Synchronization ensures that the locally stored results are synced with your DQOps Cloud account, allowing you to view them on the dashboards.
Change a schedule at the connection level
With DQOps, you can easily customize when checks are run by setting schedules. You can set schedules for an entire connection, table, or individual check.
After importing new tables, DQOps sets the schedule for 12:00 P.M. (noon) every day. Follow the steps below to change the schedule.
-
Navigate to the Data Source section.
-
Choose the connection from the tree view on the left.
-
Click on the Schedule tab.
-
Select the Monitoring daily tab
-
Select the Run every day at and change the time, for example, to 10:00. You can also select any other option.
-
Once you have set the schedule, click on the Save button to save your changes.
By default, scheduler is active. You can turn it off by clicking on notification icon in the top right corner of the screen, and clicking the toggle button.
Once a schedule is set up for a particular connection, it will execute all the checks that have been configured across all tables associated with that connection.
You can read more about scheduling here.
You might also want to check the Running checks with a scheduler example.
YAML configuration file
The YAML configuration file stores both the table details and checks configurations.
In this example, we have set the maximum count threshold level for the check:
- warning: 0
The highlighted fragments in the YAML file below represent the segment where the monitoring daily_invalid_ip4_address_format_found
check is configured.
If you want to learn more about checks and threshold levels, please refer to the DQOps concept section.
apiVersion: dqo/v1
kind: table
spec:
incremental_time_window:
daily_partitioning_recent_days: 7
monthly_partitioning_recent_months: 1
columns:
ip4:
type_snapshot:
column_type: STRING
nullable: true
monitoring_checks:
daily:
patterns:
daily_invalid_ip4_address_format_found:
warning:
max_count: 0
result:
type_snapshot:
column_type: INT64
nullable: true
date:
type_snapshot:
column_type: DATE
nullable: true
In this example, we have demonstrated how to use DQOps to verify the validity of data in a column. By using the invalid_ip4_address_format_found column check, we can monitor that the number of invalid IP4 address in a column does not exceed the maximum accepted count. If it does, you will get a warning result.
