Percentage of duplicates

Verifies that the percentage of duplicate values in a column does not exceed the maximum accepted percentage.

PROBLEM

Austin-311-Public-Data provides the residents of Austin with a simple single point of contact for every city department.

What started as police non-emergency line for the City of Austin has become a robust Citywide Information Center where ambassadors are available to answer residents’ concerns 24 hours a day, 7 days a week, and 365 days a year.

The unique_key column contains unique key data. We want to verify the percent of duplicated values on unique_key column.

SOLUTION

We will verify the data of bigquery-public-data.austin_311.311_service_requests using profiling duplicate_percent column check. Our goal is to verify if the percentage of duplicated values in unique_key column does not exceed set thresholds.

In this example, we will set three maximum percentage thresholds levels for the check:

warning: 1.0%
error: 2.0%
fatal: 5.0%

If you want to learn more about checks and threshold levels, please refer to the DQO concept section.

VALUE

If the percentage of duplicated values on unqiue_key column exceed 1.0%, a warning alert will be triggered.

Data structure

The following is a fragment of the bigquery-public-data.austin_311.311_service_requests dataset. Some columns were omitted for clarity.
The unique_key column of interest contains unique values.

unique_key	complaint_description	source	source	status_change_date	created_date
19-00454912	Parking Machine Issue	Phone	Closed	12/3/2019 6:54:59	11/30/2019 11:33:22
20-00288726	Community Connections - Coronavirus	Phone	Closed	7/16/2020 11:26:40	7/16/2020 10:21:17
19-00458482	Parking Machine Issue	Phone	Closed	12/5/2019 6:41:42	12/3/2019 12:57:47
17-00207653	Street Light Issue- Address	Web	Closed	7/20/2017 12:33:20	7/20/2017 11:19:51
18-00118937	Parking Machine Issue	Phone	Closed	4/25/2018 13:30:43	4/24/2018 8:30:23
20-00525858	Community Connections - Coronavirus	Phone	Closed	12/29/2020 14:13:49	12/28/2020 17:26:17
14-00150037	Street Light Issue- Multiple poles/multiple streets	Phone	Closed	7/21/2014 14:52:20	7/21/2014 14:36:47
14-00181676	Parking Machine Issue	Phone	Closed	8/28/2014 10:40:32	8/27/2014 11:32:21

YAML configuration file

The YAML configuration file stores both the table details and checks configurations.

In this example, we have set three maximum percentage thresholds levels for the check:

warning: 1.0%
error: 2.0%
fatal: 5.0%

The highlighted fragments in the YAML file below represent the segment where the profiling duplicate_percent check is configured.

If you want to learn more about checks and threshold levels, please refer to the DQO concept section.

apiVersion: dqo/v1
kind: table
spec:
  incremental_time_window:
    daily_partitioning_recent_days: 7
    monthly_partitioning_recent_months: 1
  columns:
    unique_key:
      type_snapshot:
        column_type: STRING
        nullable: true
      profiling_checks:
        uniqueness:
          profile_duplicate_percent:
            comments:
              - date: 2023-04-14T09:13:20.243+00:00
                comment_by: user
                comment: In this example, values in "unique_key" column are verified  whether
                  the percentage of duplicated values does not exceed the indicated
                  thresholds.
            warning:
              max_percent: 1.0
            error:
              max_percent: 2.0
            fatal:
              max_percent: 5.0
    complaint_description:
      type_snapshot:
        column_type: STRING
        nullable: true
    source:
      type_snapshot:
        column_type: STRING
        nullable: true
    status:
      type_snapshot:
        column_type: STRING
        nullable: true
    status_change_date:
      type_snapshot:
        column_type: TIMESTAMP
        nullable: true
    created_date:
      type_snapshot:
        column_type: TIMESTAMP
        nullable: true

Running the checks in the example and evaluating the results using the graphical interface

The detailed explanation of how to run the example is described here.

To execute the check prepared in the example using the graphical interface:

Navigating to a list of checks

Go to Profiling section.
Select the table or column mentioned in the example description from the tree view on the left.
Select Advanced Profiling tab.

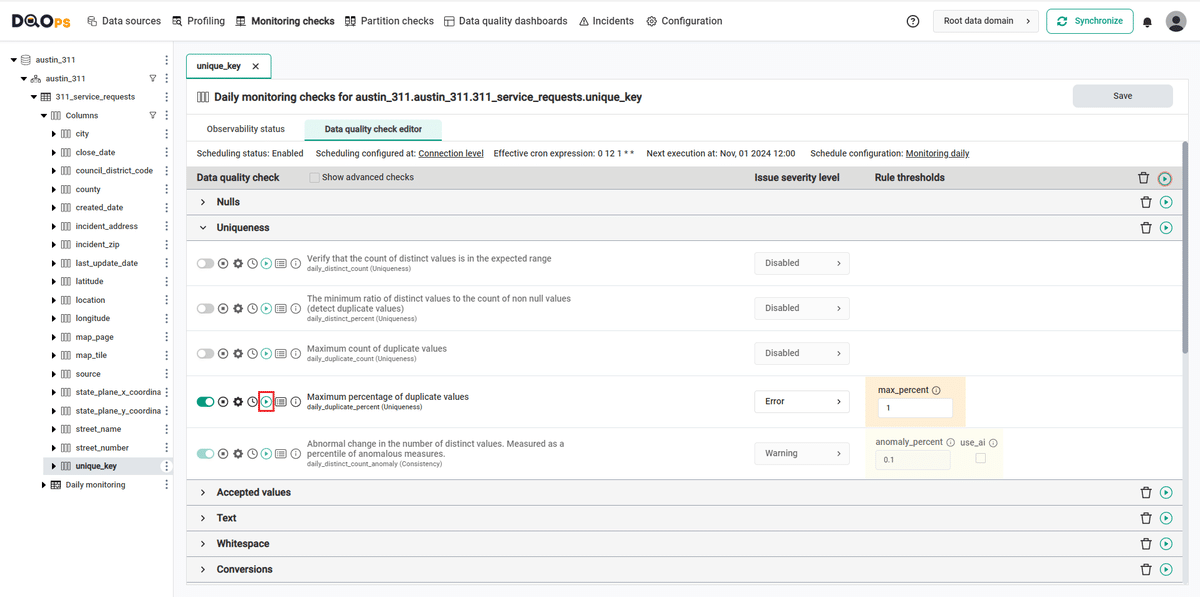

Run the enabled check using the Run check button.
Review the results by opening the Check details button.
You should see the results as the one below. The actual value in this example is 0, which is below the maximum threshold level set in the warning (1.0%). The check gives a valid result (notice the green square on the left of the name of the check).

Duplicate-percent check results

After executing the checks, synchronize the results with your DQO cloud account sing the Synchronize button located in the upper right corner of the graphical interface.
To review the results on the data quality dashboards go to the Data Quality Dashboards section and select the dashboard from the tree view on the left. Below you can see the results displayed on the Daily tests per column dashboard showing results by connections, schemas, data group and tables.

Duplicate-percent check results on daily tests per column dashboard

Running the checks in the example and evaluating the results using DQO Shell

The detailed explanation of how to run the example is described here.

To execute the check prepared in the example, run the following command in DQO Shell:

check run

You should see the results as the one below. The percent of the duplicate values in the unique_key column is below 5.0% and the check gives valid result.

Check evaluation summary per table:
+----------+-------------------------------+------+--------------+-------------+--------+------+------------+----------------+
|Connection|Table                          |Checks|Sensor results|Valid results|Warnings|Errors|Fatal errors|Execution errors|
+----------+-------------------------------+------+--------------+-------------+--------+------+------------+----------------+
|austin_311|austin_311.311_service_requests|1     |1             |1            |0       |0     |0           |0               |
+----------+-------------------------------+------+--------------+-------------+--------+------+------------+----------------+

For a more detailed insight of how the check is run, you can initiate the check in debug mode by executing the following command:

check run --mode=debug

In the debug mode you can view the SQL query (sensor) executed in the check.

**************************************************
Executing SQL on connection austin_311 (bigquery)
SQL to be executed on the connection:
SELECT
    CASE
        WHEN COUNT(analyzed_table.`unique_key`) = 0 THEN 100.0
        ELSE 100.0 * (
            COUNT(analyzed_table.`unique_key`) - COUNT(DISTINCT analyzed_table.`unique_key`)
        ) / COUNT(analyzed_table.`unique_key`)
    END AS actual_value,
    CURRENT_TIMESTAMP() AS time_period,
    TIMESTAMP(CURRENT_TIMESTAMP()) AS time_period_utc
FROM `bigquery-public-data`.`austin_311`.`311_service_requests` AS analyzed_table
GROUP BY time_period, time_period_utc
ORDER BY time_period, time_period_utc
**************************************************

You can also see the results returned by the sensor. The actual value in this example is 0.0%, which is below the maximum threshold level set in the warning (5.0%).

**************************************************
Finished executing a sensor for a check duplicate_percent on the table austin_311.311_service_requests using a sensor definition column/uniqueness/duplicate_percent, sensor result count: 1

Results returned by the sensor:
+------------+------------------------+------------------------+
|actual_value|time_period             |time_period_utc         |
+------------+------------------------+------------------------+
|0.0         |2023-04-25T14:37:23.670Z|2023-04-25T14:37:23.670Z|
+------------+------------------------+------------------------+
**************************************************
