Configuring Slack notifications
DQOps supports integration with Slack webhooks which are used to set up in-app Slack notifications.
Slack integration allows you to receive notifications whenever an issue is detected in your data and a new incident is created or modified.
Configuration steps in Slack API
-
Open Slack webpage
Open the slack API webpage: https://api.slack.com/apps and select the app you would like to receive notifications.
In case you have not already created a Slack app or want to configure notifications with a new Slack app, select the Create New App button. It will trigger a pop-up window with the app creation.
Next, select the From scratch.
On a final window fill the App Name as DQOps Notifications and pick a workspace to integrate notifications.
-
Enable Incoming Webhooks in the Features section
To be able to receive Incoming Webhooks messages on Slack you need to enable this feature on the Slack API webpage using the ON/OFF toggle button.
You can find more information about sending messages using Incoming Webhooks here
-
Create a new webhook URL or copy an existing one that you will paste into the DQOps at the later steps. You can find Webhooks at the bottom of the same page.
We suggest testing if the set Webhooks configuration is correct by running a sample curl command in the command line.
Soon after executing the curl command, you should get a message in Slack
Slack application supports configuration of multiple webhooks within a single app.
You can divide connections or even different statuses of incidents and link them to a different Slack channel within a single Slack application.
Configuration steps in DQOps
To add a Webhook URL to DQOps:
-
Open the DQOps application and go to the Data Sources section.
-
In the tree view on the left, select the data source of interest, and select the Incidents and Notifications tab.
The url path part can be also used : /sources/connection/[connection_name]/incidents
Remember to replace [connection_name] with your connection name, created in DQOps application.
-

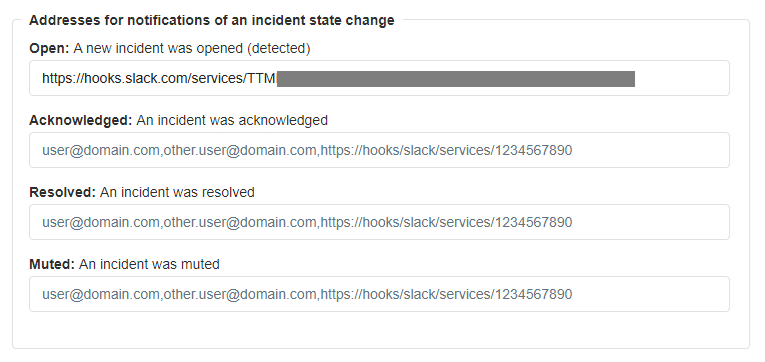

In the Webhooks for notifications of an incident state change section, paste the Webhook URL that you get in the Slack app into the “A new incident was opened (detected)” field.
-
Save the changes by clicking the Save button. Now each time a new incident is open you will receive a notification in Slack.
If you would like to receive notification on statuses other than Open, fill in other input fields with Webhook URLs.
Notification example in Slack
Each notification type has a slightly different message.
New incident message example
The notifications about a new data quality incident should be published to a dedicated Slack channel visible to the support team that is monitoring and assessing new data quality incidents. It could be the data quality team or a 2nd level support team.
This type of notification should be configured in the A new incident was opened (detected) field on the webhook configuration page. The Slack webhook url for this parameter should point to the Slack channel used by the 2nd level support team that is monitoring and reviewing new data quality incidents.
A new incident preview in Slack is shown below.
Acknowledged incident message example
After the support team reviews a new data quality incident in DQOps, the support user will change the status of a valid incident to Acknowledged. Changing the incident status to Acknowledged is the next status in the incident management workflow, which means that the incident was acknowledged (confirmed), and is assigned to the engineering team (the 3rd level support) to be fixed.
This type of notification should be configured in the An incident was acknowledged field on the webhook configuration page. The Slack webhook url for this parameter should point to the Slack channel used by the 3nd level support team that is fixing data quality incidents.
An acknowledged incident preview in Slack is shown below.
The difference from the message published for a new incident is subtle. Only the Acknowledged, Resolved and Muted status messages differ in the title.
Setting incident base url
The View in DQOps link will open an incident url in DQOps. If your DQOps instance is running in production mode and the DQOps web interface is assigned a host name, the base url must be configured. The default base url of DQOps is derived from the port number configured using the --server.port parameter. When no additional configuration is applied, the incident url will look like http://localhost:8888/incidents/bigquery-public-data/2023/10/70cc4354-344f-bf9c-9bab-34ffae2f1179.
The http://localhost:8888/ base url can be configured when starting DQOps using the --dqo.instance.return-base-url startup parameter as shown in the following example.
The base url for a DQOps Cloud SaaS instance is already configured, and the base address is https://<customer>.us.dqops.com for instances hosted in the USA.
